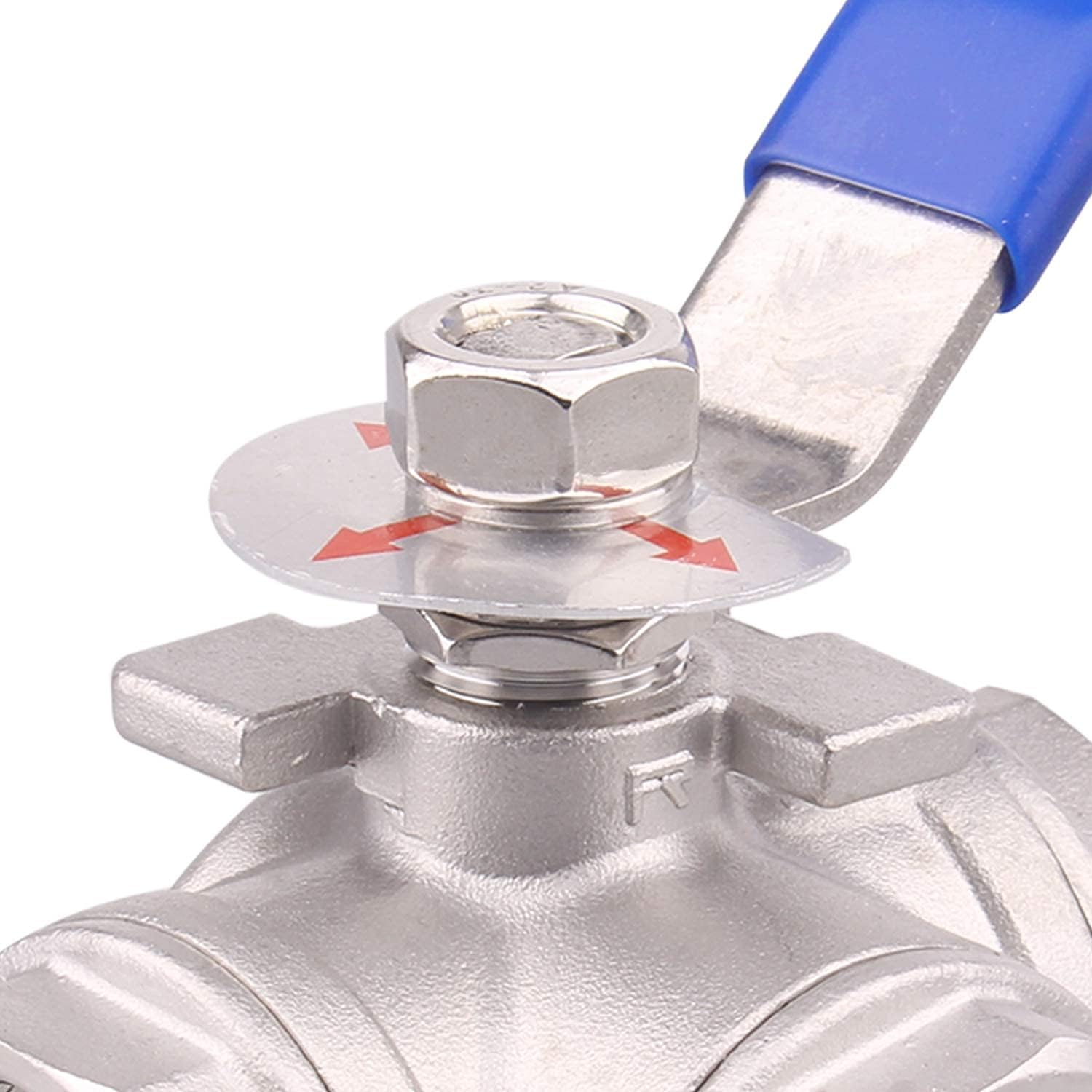

DERNORD 3-Way Ball Valve, T Mounting Pad, Stainless Steel 304 Female Type for Water, Oil, and Gas with Vinyl Locking Handle (1 Inch NPT)
Product details
| Management number | 211105219 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211105219 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 3-Way Ball Valve - T Mounting Pad
- 3-Way Ball Valve Fluid temp range: -20°f to 410°f
- 3-Way Ball Valve - Can be taken apart via threads, 1 Inch Female NPT Ports
- T-type Ball Valve Nominal Working Pressure:1000 WOG: Max 1000 psi for Water, Oil, Gas
- Body & Ball Type:Stainless Steel 304 Handle:Heavy duty handle with blue vinyl insulation
| Size | 1 Inch NPT |
|---|---|
| Brand Name | DERNORD |
| Unit Count | 1 Count |
| Valve Type | Ball Valve |
| Thread Size | 1 Inch |
| Thread Type | National Pipe Tapered |
| Manufacturer | DERNORD |
| Model Number | DNJF1501171-5 |
| Material Type | Stainless Steel |
| Connector Type | Threaded |
| Exterior Finish | Metal,Stainless Steel |
| Number of Ports | 3 |
| Maximum Pressure | 1000 Pound per Square Inch |
| Specification Met | ASTM, NSF, ASME, ANSI |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | FNPT |
